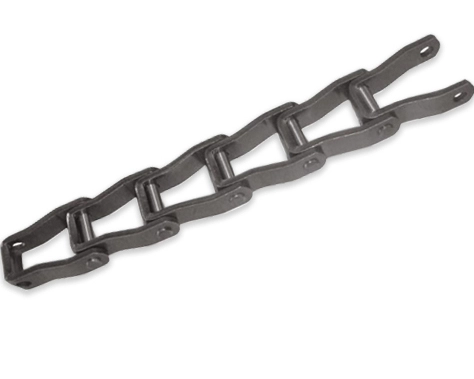

600 Class Pintle Chain

Category:

Description

Our 600-class pintle chains offer superior performance, strength, and durability versus other 600 class steel pintle chains. We offer both an import and domestically made in USA version of these chains. These are the most commonly used type of pintle chains because they offer such high strengths and long operation. These chains are typically found in agricultural applications, sand spreaders, manure spreaders, salt spreaders, conveyors, forage harvesters, baggers, live bottom trailers, and many more applications. If you need a complete trailer assembly with welded attachments or slats we can provide those, we also stock 600 class pintle chain sprockets, attachments, and chain breakers.
Our 600-Class Pintle Chain Benefits:

  • Fully heat-treated parts
  • Quad-staked pins
  • Open barrel design
  • Smooth operation
Chain Size Pitch Ultimate Strength Sidebar Height (B) Sidebar Thickness (C) Pin Diameter (D) Weight
662 1.664″ 12,500 LBS 0.720″ 0.125″ 0.281″ 1.05 LBS/ FT
667H 2.313″ 14,000 LBS 0.875″ 0.125″ 0.312″ 1.17 LBS/ FT
667X 2.250″ 23,000 LBS 0.938″ 0.170″ 0.437″ 1.86 LBS/ FT
667XH 2.250″ 28,000 LBS 1.050″ 0.225″ 0.465″ 2.8 LBS/ FT
667J 2.250″ 20,600 LBS 0.937″ 0.170″ 0.375″ 1.81 LBS/ FT
88K 2.609″ 29,000 LBS 1.063″ 0.200″ 0.437″ 2.3 LBS/ FT
88XH 2.609″ 38,000 LBS 1.138″ 0.252″ 0.500″ 3.32 LBS/ FT
88C 2.609″ 38,000 LBS 1.138″ 0.252″ 0.500″ 3.32 LBS/ FT
308C 3.075″ 52,000 LBS 1.500″ 0.315″ 0.625″ 5.65 LBS/ FT
58 4.000″ 50,000 LBS 1.500″ 0.310″ 0.625″ 5.5 LBS/ FT
Note: Additional information and dimensions available on product pages.
